GoGoA1 17inch E-Motorcycle In-Wheel 5000W Hub Motor Drive Train for R & D & OEM Supply

40,300.080,200.0

*AVAILABLE ON PRE ORDER DISPATCH AFTER 2 months

Order placed will be dispatched within 45-60 days of placing the order.

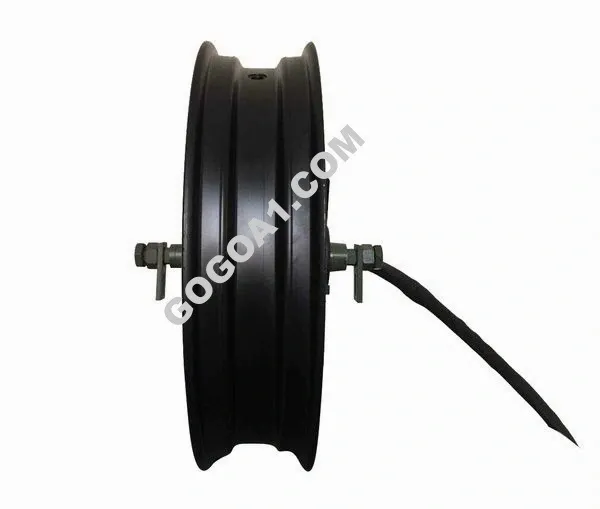

17inch 273 E-Motorcycle In-Wheel Hub Motor(45H) 5000W

17inch Hub Motor specially designed for electric motorcycle, the rated power can be made 2kw,3kw,4kw,5kw,6kw,7kw or 8kw. Max speed can be customized from 30-120KMPH.

Motor Specification:

1. Motor Type: BLDC Hub Motor with Permanent Magnets

2. Motor design: Double axle out with 17inch Aluminium rim

3. Rim size:3.5×17

4. Matching Tire: 120/70-17

5. Magnet Height: 45MM

6. of Pole Pairs: 28 pairs

7. Rated Power: 5000W

8. Max Power:7200W(Peak 10000W)

9. Rated Voltage: 72V( 60V-144V Can be optional)

10. Speed: 100km/h (30-100km/h can be customized)

11. Max No-load RPM:1000RPM

12. Max Torque: 230N.M

13. Max Efficiency: 88%

14. Continuous current:78 A

15. Max current:120A ,Peak 170A

16. Brake type: Disc brake

17. Rear Fock width for installation: 200mm

18. Winding Core material: Aluminium

19. Cross Section of Phase wire: 16 mm2

20. Hall sensor phasing angle: 120 degree

21. Temperature Sensor: Optional

22. Working Temperature: 70 degree, Peak 120 degree

23. Waterproof Grade: IP54

24. W./ G..W. : 21kgs / 22kgs

25. Package Size: 58*58*40CM
